Monday, 29 August 2016

Inside Passive House CasaTortuga


We are closing in on one full year of living in the house now. It has been wonderful. I don't think either of us has missed Priscilla for even one second.

I'm still puttering along with finishing the bits that need finishing. The pantry is the next big project I'll soon be gearing up to start. The last couple of months has been dedicated to finishing the interior of the screened porch. It's finally done now too. At this time of the year it is the best room of the house. I will have to attempt to photograph it to show it off too but the quality of the pictures will be nothing like the ones that follow.

These pictures are some of only a few that you will find on the Kendel-Dezoete Designs Houzz page. We would like to give a big shout out to Mike Dezoete for making the experience of tricking out a kitchen, 2 bathrooms and a laundry room/closet so enjoyable. By the time we finally found our way to Mike we were pretty overwhelmed by the whole process of building a house and having to make decisions about a million and one details. He made it fun again...and easy. Thanks Mike...you're the best!

So here is the main level of Casa Tortuga...

The kitchen is always the best room in the house. At this time of year the counter top is the same color as the leaves outside. It's almost like you're outside when standing at the sink, surrounded by green and the large window.
It makes doing dishes a little bit more pleasant...if that's possible.
                                                                                                                                               ~photo credit: RDZ Photography
The kitchen view from the dining table.
                                                                                                                                    ~photo credit: RDZ Photography
The living room view from the dining table.
                                                                                                                                    ~photo credit: RDZ Photography
The master bathroom (or "principle" bathroom as cousin Marie prefers. Actually, I like that better too.).
The barrier-free shower is in the background. Note the niche by the tub...tall enough to accommodate any wine bottle!
                                                                                                                                    ~photo credit: RDZ Photography
The view from the shower through the laundry/closet area into the principle bedroom.
                                                                                                                                    ~photo credit: RDZ Photography
The guest bathroom on the lower level. I still need to build the permanent vanity for this room. What is there now is
temporary...so guests have some place for toiletries when they visit.
                                                                                                                                    ~photo credit: RDZ Photography

That's it. The photographer was only here to photograph the kitchen and bathrooms. There are more photos that show more views of these rooms plus a couple more areas outside these rooms on the Kendel-Dezoete Designs page on Houzz. Check them out here: http://www.houzz.com/projects/1977084/passive-home-Lyndhurst

And now for the not-so-high-quality photos...

The recently completed screened porch, looking west. Absolutely the best room of the house at this time of year!
The ceiling actually isn't arched. The only way I can take a photo of a whole room is with the panorama function
 on the iPhone's camera. That's the Turtle Falls workshop in the background...
where I spend most of my waking hours these days.
Looking east in the screened porch. A wood-burning fireplace and WeatherMaster windows will allow us
 to use this room on those nice sunny days through the fall and winter.

That's all for now. I better get back to work...still many things to build for Casa Tortuga in the Turtle Falls workshop!

More later,
Mimi




Sunday, 17 July 2016

Certified Passive House Casa Tortuga



Casa Tortuga's new welcome sign.
Five years ago we bought the piece of waterfront property we now affectionately call Turtle Falls.

Four years ago we started planning to build something. We had no idea what at the time.

Two years ago we started to build the house we call Casa Tortuga. We were striving for Passive House certification. It was a big leap of faith in an area where no other passive houses existed to help guide us on our journey.

We had 3 very dedicated men willing to help us achieve such a lofty goal. None of them had built a passive house before or had even heard of such a thing. They were meticulous in executing the details necessary to achieve passive house standards.

March 15th of 2016, we were notified that we had achieved Passive House certification.

Hallelujah!

The west end of Casa Tortuga...and the view you see as you drive up.
The south facing fa├žade with enough overhang to keep the interior cool
during the hot summer days.


We still have landscaping to do. But we have the rest of our days to putz away at that. The kitchen designer is wanting to come by soon and photograph the interior...so you'll have to wait to see the inside until that has been done.

That's all for now. It's a gorgeous day here at Turtle Falls and I really would prefer to be on the dock than typing away at this computer.

More later,
Mimi


Welcome to Casa Tortuga...
one of Canada's newest
certified passive houses.



Saturday, 16 January 2016

Insulation Insanity?

Time sure does fly when you're having fun. We have been living in the house now for 4 months and I am still puttering along on the interior finishing details. That's why I have been so lax with the blog posts.


Today's ramblings are about the insulation encapsulating Casa Tortuga. Insulation is one of the main components of a passive house. For the uninitiated, the amount of insulation we have in this house is a real head shaker. More often than not, folks will look at us in disbelief when the subject comes up and you can see them mentally calculating the expense of all that over insulation and then...well...they shake their head some more.


You be the judge. Here's what has gone into insulating this house...

14" (35.5cm) of XPS under the slab. That's an R-value of 70.
1" (2.5cm) of foil-faced polyiso/XPS between the stud wall and the concrete
foundation wall. This is the layer that gives us the continuous air-tight
envelope, bottom to top.
1" (2.5cm) foil-faced polyiso, making its way to the ceiling of the upper level.
This layer also serves as our vapour barrier.

The air-tight envelope is completed with the installation of
1" (2.5cm) polyiso on the ceiling of the upper level.

On the inside of the 1" (2.5cm) polyiso
is 6" (15cm) of Roxul mineral wool insulation.
On the outside of the concrete foundation, 2 layers of EPS Styrofoam
equal to 10.5" (26.6cm) is installed. Also, note the 16" (40.6cm) deep I-joist
cavities above the styrofoamed concrete foundation.
Those 16" (40.6cm) deep I-joists, installed all around the house above the
concrete foundation wall, get filled with dense-pack cellulose. The wall
system is now around R-72 (Roxul/polyiso/concrete/EPS)
to R-90 (Roxul/polyiso/cellulose) when the Roxul, polyiso and cellulose
components are added together.

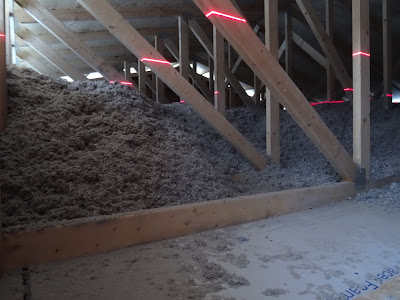

Last but not least, 28" (71cm) of blown-in cellulose in the
attic completes the passive house insulation. R-value here is around 80.

Well...are you shaking your head yet? Laid out in pictures like this it does seem a bit over the top. But the fact that the heat pump rarely gets past the ultra low setting on a cloudy day here in the winter makes it all worthwhile.

I will say the lack of a conventional heating system makes for a very comfortable living environment. You may know what it's like with the drier winter air and the forced-air heating...how you feel like you're drying up from the inside out, the chapped lips, the parched mouth, the itchy dry skin. Well...that doesn't happen here. Just one of the perks of insane amounts of insulation.

Gotta love it!

More later,
Mimi


Sunday, 15 November 2015

Heating & Ventilation - Part 2

Now that the temperatures are starting to dip around these parts our minds are on staying warm indoors rather than cooling off in the lake. It's time to talk about how we will be heating Casa Tortuga.

Usually by this time of year, in any of our previous residences, I would have already been wearing a turtleneck for a few weeks and we'd have cranked the thermostat up to 24°C. The furnace would run almost constantly and there would be times, even though the thermostat said 24°C, there still seemed to be a chill that made me want to wear my turtleneck to bed. And I did sometimes...socks too. It was not fun...nor sexy for that matter. Anyway...

This is also the time of year when the clocks have been turned back and it's dark by about 4:30 pm that I wish I had a time machine that could fast forward through the dark cold months and transport us right into spring again.

This year sheds a whole new light on how I feel about the arrival of winter. With the sun getting lower in the sky every day we are benefiting from the solar heat gain. So now I look at the shorter days in a completely different way than I have in the past. I actually find myself looking forward to the next shorter day to see how much further into the house the beautiful sunshine will reach. To date, a sunny day will easily get the interior temperature to 24°+C, without the help of any other heat source.

The turtlenecks are still waiting for me. I say let them wait!

One thing Ras and I have both noticed is that 21°C feels warmer in this house than it ever did in the last house. 21°C was turtleneck temperature for sure (for me at least) in the last house and reason to bump the thermostat to 24°C. In this house, 21°C is perfectly comfortable. I continue to wonder if 21°C inside will still be comfortable when it's -21°C outside and the sun hasn't shone for 2 weeks.

It's the cloudy days for which we had to install the heat sources. So here's what heats the place.

Two Fujitsu air source heat pumps (16,000 BTU/h), one for each level.
One indoor heat pump head (white box on the wall, top right) on the main level.
One indoor heat pump head on the lower level.
Artwork still not hung making walls look too too naked.

Supplemental heat sources include...

Ditra-Heat in-floor heat in the master bath area.
There are 2 LED fireplaces in the house, one on each level. The electric
heat function was used toward our supplemental heat source calculations.
We only wanted the fireplaces for the (light) ambience. It's doubtful
we will ever use the heat function.


The building inspector was concerned we would have cold rooms in the house because the heat sources are centralized rather than ducted, therefore he insisted we wire for baseboard heaters in every room. Sacrilege! We wired to appease him but I refuse to let a baseboard heater anywhere near the place.

This past weekend we kept the door closed on the north-east-corner room on the lower level. There is no heat source in that room other than the east facing window. After 48 hours with the door closed the temperature was incredibly close to the rest of the house, almost imperceptible.

So far, the inspector has been proven quite wrong. I know it's still relatively mild compared to what we are in for but all the rooms in the house are comfortably warm. I haven't done my geek thing yet to measure temperatures room by room. That's a project I will get to. The ERV was just commissioned earlier this week so I didn't want to get too crazy measuring stuff until that was done.

Last, but not least. Our choice for water heating.

 80 gallon A.O. Smith air-source heat pump water heater.

We chose an air-source heat pump water heater for it's energy efficiency. Some would argue that the purchase price of the unit wipes out any savings gained by the lower energy usage. That may very well be true in this case too, but we needed the unit's efficiency and cooling capabilities to help with our passive house numbers. In for a penny in for a pound, as they say.

The water heater has worked like a charm...but it is noisy. The compressor runs at about the noise level of a canister-type vacuum. Until we get the insulated door on the utility room we have taken to switching the unit over to electric (silent) mode only when we have overnight visitors. I have checked the hydro website to compare electricity usage of both modes. The heat pump mode is definitely more efficient using about 4 kWh for one heating cycle vs about 10kWh during one heating cycle in electric mode.

Some advantages that this heat pump water heater has over a conventional water heater is that it cools the air in the room. That's how this water heater works...it takes the heat from the surrounding air to heat the water. Our utility/storage room is plenty big enough to accommodate the air volume needs of the water heater so we have not noticed that the air temperature in the surrounding rooms is noticeably cooler. This cooling feature will come in handy in the summer. As well, it dehumidifies the air. And...it keeps the air temperature of the utility room at the perfect temperature for storing wine. Bonus! Maybe the extra cost for the unit is not that bad after all.

That's enough for now...cheers,
Mimi




Monday, 12 October 2015

First Annual Cold Turkey Plunge

I hope all you Canadians out there survived your over-indulgence of turkey this long Thanksgiving weekend. We did!

Just for fun, and mostly for our friends who have heard enough about passive house and long for something more fun to read about here on the blog, this one is for you.

Ras has decided that the Thanksgiving tradition here at Turtle Falls should be as invigorating as it is crazy. So she initiated the Cold Turkey Plunge. And believe it or not she was able to recruit four other keeners to join her. Here they are...

The brave ones...2 nephews, a sister, a sister-in-law, and Ras

Now let me explain why I am not in the picture. Someone had to take pictures. And since I actually have a degree in photographic arts, who better to take the photos? It matters not that my sister takes way better photographs than I do even though she doesn't have the 4 years of training under her camera belt as I do. It matters not that the water temperature was a seriously shivering 15°C (59°F). Someone had to document the First Annual Cold Turkey Plunge. Right?

Ok, the truth is...I'm a big wimp! Cold is not my cup of tea. 'Nuf said.

So here it is, as best I could do with only an iPhone for a camera in a 14' boat on a blustery day in front of the Turtle Falls dock...

Note how the instigator of the event is the first one to hit the water.
Note the passel of paparazzi shooting from behind.
Oh...that has got to be cold.
I'd say by the look on Ras's face that...yup...it's cold.

I've never seen so much clambering to be the first to get to the ladder. Note the nephew with the casted arm up in the air. Everyone blew past the poor dude trying to get out as fast as humanly possible. From the boat I kept wondering when someone was going to assist the one-armed lad out of the water. His mother finally offered a somewhat numbed helping hand.

The yelping was pretty impressive too. Our apologies to the neighbors if the commotion interrupted your peaceful Thanksgiving dinners.

I do have a little something-something for the readers that visit my blog strictly for passive house stuff. A product endorsement. In the cropped photo below, look at the cast protector on the arm of tall nephew. I said "the cast protector" people...eyes right. Eyes right!

No you have not been redirected to www.hot_1-armed_guys(dot)com

First I wrapped his cast with pallet wrap then taped that with Tuck tape, a clear plastic trash bag next, taped at the top with Siga Rissan tape for a water tight seal. It worked great...until it was time to unwrap him. Oh dear! Lordy, that stuff is sticky. I have to admit I started to sweat just a little when I was trying to get the tape to release from his skin. He smiled through the whole ordeal. He didn't spill any blood. I think he'll come back again to visit us.

These passive house sealing tapes really are sticky, seal tightly in some pretty wet conditions (a frigid lake dip then a hot shower to warm up) and will hold like crazy. I think we can rest assured our miles and miles of tapes will do their job for decades to come. I'm just thankful I didn't go that one step further and use the Dockskin primer on his arm before taping him up. ;)

I'll end my foolishness here.

Cheers,
Mimi


Saturday, 10 October 2015

Heating & Ventilation - Part 1

It's been too long since I last wrote about the adventures of building this passive house. March I believe. When we passed our first blower door test. Most homes could be built in the length of time since my last post, but not Casa Tortuga. I joke that maybe we should have named the place Puma Palace and things may have happened much faster around here. But where's the fun in that?


Much has happened here since March. We have actually moved into the house and Priscilla has
left Turtle Falls for her next adventure. Will we miss her? Yes. And NO! The camping memories with
family and friends will always be a highlight of the Priscilla years. The cramped quarters, the leaky
roof, the outhouse...in the middle of the
night, the ants, black flies, mosquitos and deer
flies, the lack of showering and laundry facilities,
the mice, the mice and...THE MICE! These are
just a few of the things we will not miss.

Moving on...

Recently someone asked us what has been the
most challenging or difficult part of the building of this house. Unequivocally, it has been the heating and ventilation system. Not because it is a difficult thing to do, but because we are building a house that no one in the building department in this township has ever seen. Mass confusion and misunderstanding ensued!

To back up a little, we originally were going to install an EcoLogix cold climate heat pump. After going through the whole process of having the heat/ventilation system designed for Casa Tortuga we were advised that maybe EcoLogix wasn't quite ready to offer the customer service we would want in the future. The product is apparently quite awesome, the support...not so much. Then we got jostled around from a ducted Daiken multi-split heat pump/Zehnder ERV (energy recovery ventilator) system to a ducted Mitsubishi multi-split heat pump/AirPohoda ERV system and finally to two individual ductless Fujitsu mini-split heat pumps/Zehnder ERV system.

Zehnder ComfoAir 550 Luxe ERV (L) with the
ComfoFond Brine Loop (R) option.

The move to a local HVAC company rather than the original company chosen by our architect makes for the first change for our system. The second, the heat pump we wanted was not available yet and the ERV was not on the approved list. And finally we settled on the best available cold climate heat pump and ERV options available to us for the least amount of grief. All the best laid plans of mice and men...

Too many mice may have been our problem, I think.

Or it could be said that the building inspector has been the main reason for so much of the jumping around from system to system. AirPohoda, virtually unheard of here, has not yet made it to the list of approved ERVs for Canada and as much as we fought to get this incredibly efficient system in our house, the inspector was making the hoop-jumping impossible for us. Our last option was to go with something that was on the approved list. The Zehnder products are recognizable and approved here in Canada. And even though the efficiency of the AirPohoda trumps the Zehnder by a few percentage points, this machine is also pretty impressive.

Having a tightly sealed house requires good ventilation. The ERV runs silently in the background 24/7 exhausting the stale air and replenishing with filtered fresh outdoor air. Within the confines of that darker gray box hanging on the wall, like magic, the majority of the heat from the warm exhaust air gets transferred (with no cross contamination) to the incoming fresh air. Efficiency at its best.

Sometimes more details are just not necessary. It's kind of like electricity for me...flip a switch and a light comes on. I don't need to know how it works, I just need to know it will work. Same goes for the ventilation. Plugged it in. It works. I'm happy. Finally! It sure was a long haul getting to this point.

The brine loop option (the light gray box) bumps up the efficiency of the ERV even more by pre-heating (pre-cooling in summer) the incoming fresh air. There is just under 500 feet (152m) of glycol-filled 3/4" Pex tubing buried in the ground on the north side of the house. While air temperatures can occasionally go below -30°C (-22°F) here in the winter, the ground temperature stays fairly constant at around +10°C (50°F) past 4' (1.22m) below the surface. The ground loop will temper that -30°C (-22°F) outdoor air so the ERV will work more efficiently. This will also work in reverse in the summer time when air temperatures are +30°C (86°F). The ground loop will help to lower the temperature of the incoming fresh air before it even reaches the ERV.

With limited space for the ground loop, the 500' (152m)
was installed in layers with a minimum of 2' (0.6m)
of fill separating each layer. The top layer of tubing
 is 4' (1.22m) below the surface.

The 2 smaller grey vents are the intake and exhaust for the ERV. At the
time of this photo, the spray foam around each pipe and cutting pipes to
length is yet to be done. These need to be tightly sealed to maintain our
super tight air seal.

The two units sitting on the stands in the photo above are the mini-split heat pumps. I will talk about those in the next post since I've probably already bored you to tears with this post. Lucky for you...there will not be a 7 month wait for the next post.

And for those thinking of building a passive house, fear not! Our experience building a passive house is by no means typical. Far, far from it. Although we may not have approached this project with the simplest of ideals and plans, the resulting house is proving to be completely 100% worth the seemingly never-ending grief and gargantuan effort. As I write this, the morning sun is streaming in the gorgeously large east windows, gently warming the interior...for free. Life is good.

We remain grateful to the ever expanding league of extraordinary gentlemen helping us breathe life...and fresh air...into this labour of love known as Casa Tortuga.

Happy Thanksgiving to all the Canucks out there.

Thankfully,
Mimi
